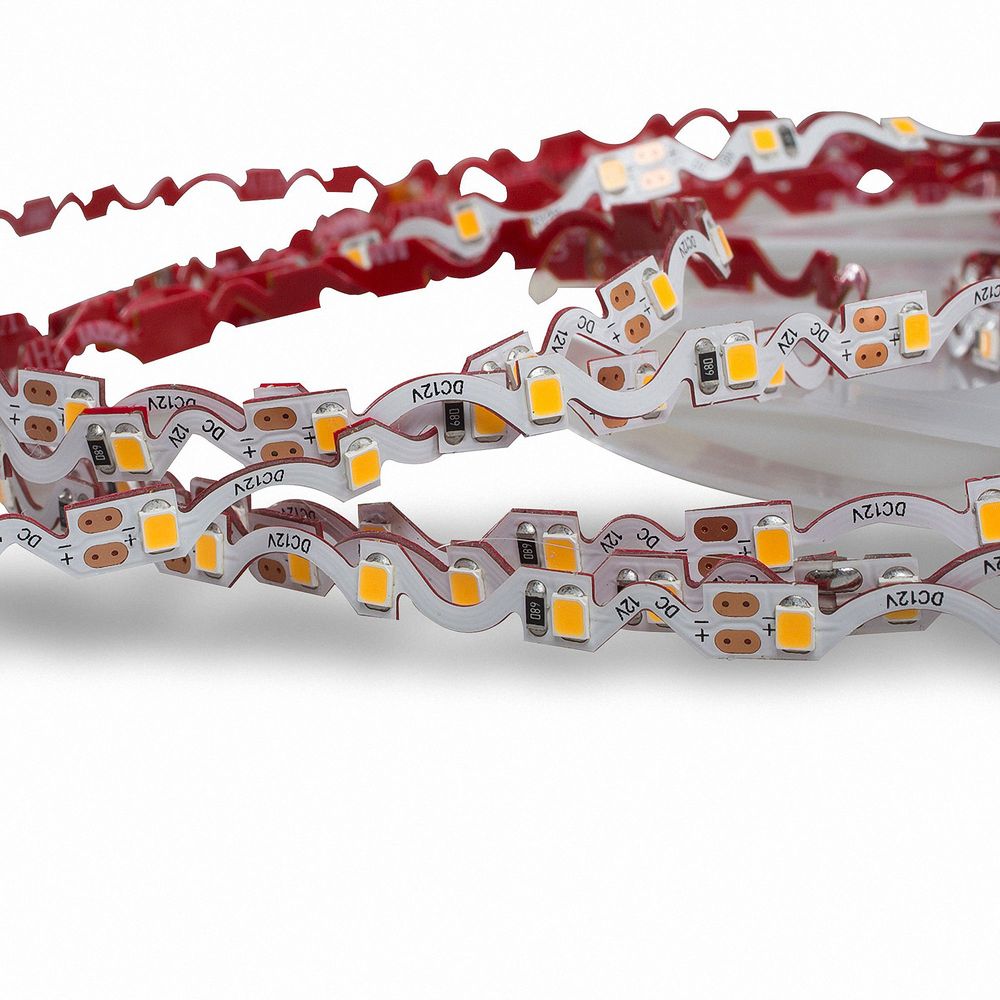

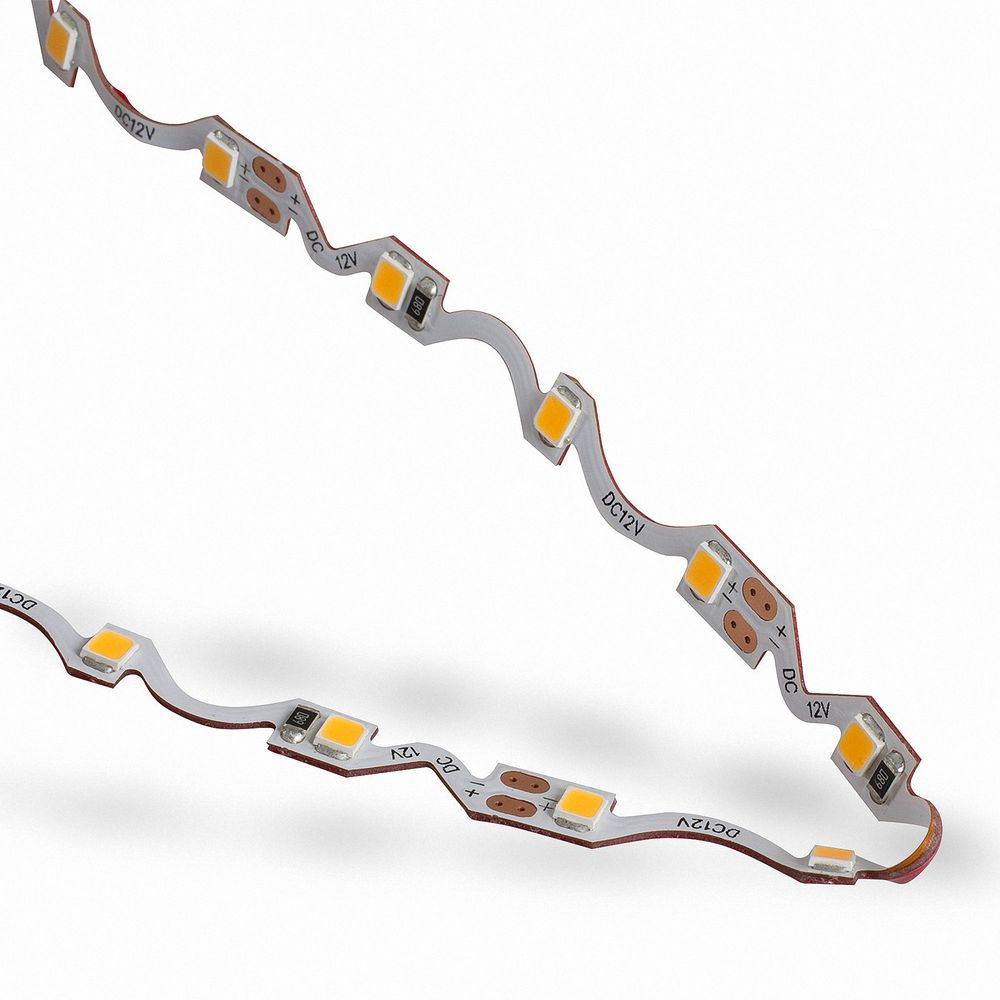

ZICK-ZACK 2835Z LED Strip, Cool White (6000K), 19.2W, 2 meters, 12V, IP20

Item number

LT2835ZW276050012IP20

Flexible and bendable 6 mm circuit board 300 LEDs 3900 LM circuit board white CRI >82

  • Flexible zig-zag PCB, perfect for angles & curves, 2 m length, 60 LEDs/m
  • Cool white 6000 K, up to 1 560 lm total output, wide 120° beam
  • Low-voltage 12 V, only 9.6 W per meter, dimmable via PWM
  • Prefitted leads on both ends for quick chaining; cuttable every ~5 cm
  • Ideal for indoor signage, cabinets, DIY; use aluminium profile for cooling
    • MSRP EUR 31.83
    EUR 26.01
    (Base price EUR 5.20 / meter )
    Content 5 meter
    Ready for shipping, delivery in 48h
    label_G_right
    * incl. VAT plus Shipping costs
    Quantity:
    if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/w1rykfkgkxzx/plugin/112/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "3EU9QN8YX2XMY"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 1); script.setAttribute("applePayComponent", 1); script.setAttribute("logToken", "e5d803145564c13e9247da710674649f"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn02.plentymarkets.com/w1rykfkgkxzx/plugin/112/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "3EU9QN8YX2XMY"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 1); script.setAttribute("applePayComponent", 1); script.setAttribute("logToken", "e5d803145564c13e9247da710674649f"); }
    if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('690259918c527', 'paylater', 'paypal', 'rect', 'gold'); }); } else { renderPayPalButtons('690259918c527', 'paylater', 'paypal', 'rect', 'gold'); } if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('690259918c527', 'paypal', 'buynow', 'rect', 'gold'); }); } else { renderPayPalButtons('690259918c527', 'paypal', 'buynow', 'rect', 'gold'); }
    if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/w1rykfkgkxzx/plugin/112/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "3EU9QN8YX2XMY"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 1); script.setAttribute("applePayComponent", 1); script.setAttribute("logToken", "e5d803145564c13e9247da710674649f"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn02.plentymarkets.com/w1rykfkgkxzx/plugin/112/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "3EU9QN8YX2XMY"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 1); script.setAttribute("applePayComponent", 1); script.setAttribute("logToken", "e5d803145564c13e9247da710674649f"); }
    Secure:shopping
    Fast
    delivery
    Free advice
    0203-928-789-63

    7 - 10 cm long open connection cables have been soldered to both ends of all LED strips so that several strips can be mounted one behind the other. For this reason, no power supply unit is included in the delivery, as the exact dimensions and total load must be determined in order to order a suitable power supply unit


    Manufacturer & Item No. : Mextronic LT2835ZW276050012IP20
    Light color: : Warm white (2700K)
    Number of LEDs per meter: : 60
    Lumens per LED : 13
    Length (meters): : 5
    Total Luminous Flux: Up to : 3900
    Color Rendering : 83
    Beam Angle (Degrees) : 120
    Operating temperature (°C): : -20ºC - 50ºC
    Operating Voltage (Volts) : 12
    Operating current per meter, max. up to (mA). : 800
    Total operating current (max): up to (A). : 4
    Power (W) per meter up to: : 9,6
    Total power (W): : 48
    Width (mm): : 6
    Height in mm: : 2
    Luminous efficacy up to : 81 lm/W
    Energy class: : G
    Protection class: : 20
    Divisible : 50-52mm
    Nominal service life up to (hours): : 50000
    Dimmable : dimmable via PWM
    Color of circuit board: : White

    Note

    If the LED strips are operated for several hours a day, we recommend additional cooling. For example, mounting on aluminum profiles provides good heat dissipation. An additional heat sink is necessary, especially with an output of more than 14.4 watts per meter. The recommended operating temperature should always be observed and the strips must not be installed in confined or enclosed spaces without cooling facilities.


    ZICK-ZACK 2835Z LED Strip, Cool White 6000 K, 2 m

    The ZICK-ZACK 2835Z LED strip brings brilliant cool-white light into the tightest corners. Thanks to its flexible zig-zag PCB, the 2-metre tape bends effortlessly around letters, displays and cabinet edges while delivering up to 1 560 lumens at just 19.2 W total power.

    Ihre Vorteile auf einen Blick

    • Extrem biegsam: Zig-zag Leiterbahn für präzise Konturen & 90°-Winkel
    • Helles, homogenes Licht: 60 LEDs/m, 6000 K, 120° Abstrahlwinkel
    • Energieeffizient & dimmbar: 12 V Betrieb, PWM-steuerbar für jede Stimmung
    • Sofort einsatzbereit: Vorgelö­tete Anschluss­kabel an beiden Enden, kürzbar alle 5 cm
    • Langlebig: Bis 50 000 h Lebensdauer; empfohlen mit Aluminiumprofil für optimale Kühlung
    State New
    Model LT2835ZW276050012IP20
    Manufacturer Mextronic
    Content 5 meter
    Weight 117 g
