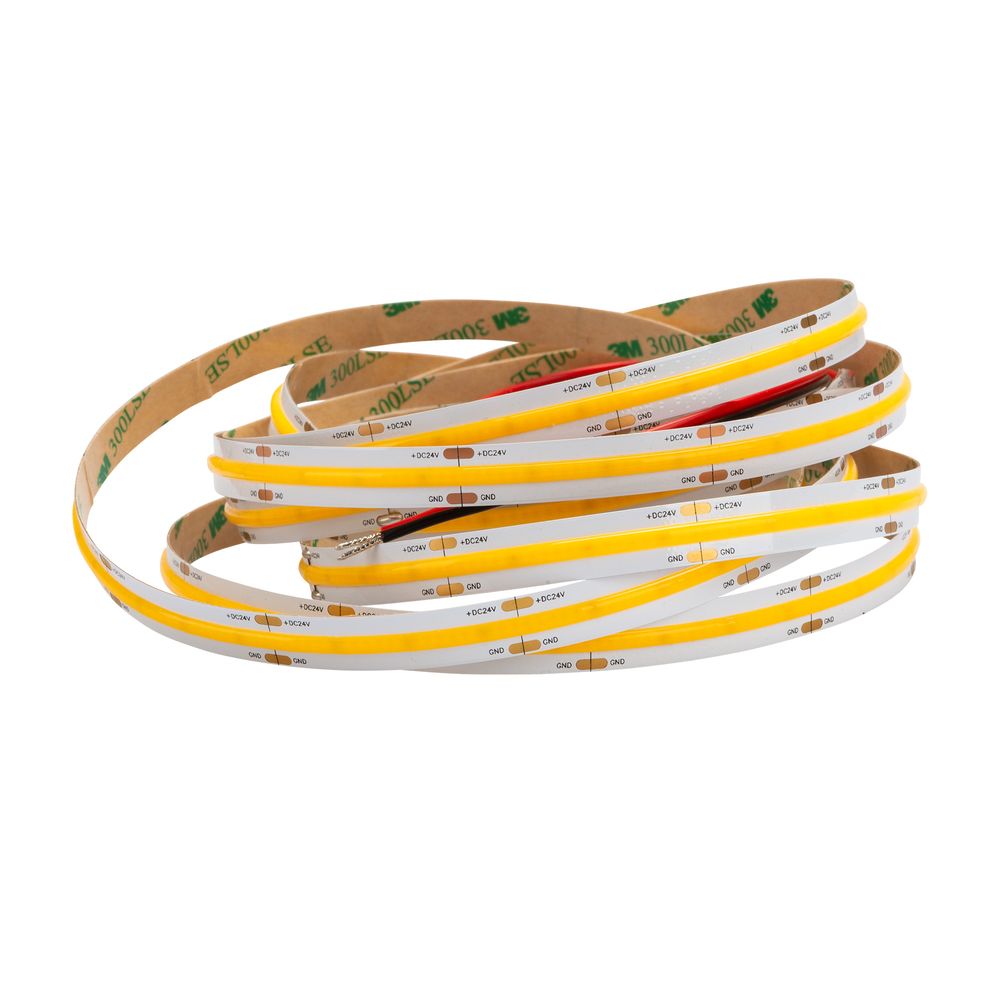

COB Eco 528 Neutral White (4000K), 45W, 3M, 24V, IP20, CRI 90

Item number

LTCOBW3052850024IP20C90

10mm board 2640xLEDs 7128 LM board white

  • Dot-free light line: 528 LEDs/m, 120° beam for seamless illumination
  • Neutral white 4000 K, CRI 90 – true colours for retail, kitchen, office
  • 45 W per 3 m, PWM-dimmable: tailor ambience & save energy
  • Safe 24 V low-voltage, pre-soldered leads for quick daisy-chain setup
  • Slim 10 mm PCB fits alu profiles; cooling recommended >14.4 W/m
    • MSRP EUR 53.87
    EUR 40.62
    (Base price EUR 8.12 / meter )
    Content 5 meter
    Ready for shipping, delivery in 48h
    * incl. VAT plus Shipping costs
    Quantity:
    if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/w1rykfkgkxzx/plugin/112/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "3EU9QN8YX2XMY"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 1); script.setAttribute("applePayComponent", 1); script.setAttribute("logToken", "caaa62836f517be10e37d9b59616d0a3"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn02.plentymarkets.com/w1rykfkgkxzx/plugin/112/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "3EU9QN8YX2XMY"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 1); script.setAttribute("applePayComponent", 1); script.setAttribute("logToken", "caaa62836f517be10e37d9b59616d0a3"); }
    if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('6902ecfdb19dc', 'paylater', 'paypal', 'rect', 'gold'); }); } else { renderPayPalButtons('6902ecfdb19dc', 'paylater', 'paypal', 'rect', 'gold'); } if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('6902ecfdb19dc', 'paypal', 'buynow', 'rect', 'gold'); }); } else { renderPayPalButtons('6902ecfdb19dc', 'paypal', 'buynow', 'rect', 'gold'); }
    if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/w1rykfkgkxzx/plugin/112/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "3EU9QN8YX2XMY"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 1); script.setAttribute("applePayComponent", 1); script.setAttribute("logToken", "caaa62836f517be10e37d9b59616d0a3"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn02.plentymarkets.com/w1rykfkgkxzx/plugin/112/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "3EU9QN8YX2XMY"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 1); script.setAttribute("applePayComponent", 1); script.setAttribute("logToken", "caaa62836f517be10e37d9b59616d0a3"); }
    Secure:shopping
    Fast
    delivery
    Free advice
    0203-928-789-63

    The COB (chip-on-board) LED strips are equipped with circuit boards containing many mini LEDs. By connecting the chips in series or in parallel, the COB LED strips create a uniform, continuous light strip with a wide beam angle instead of a row of dots.

    7 - 10 cm long open connection cables have been soldered to both ends of all LED strips so that several strips can be mounted in series. No power supply unit is included in the scope of delivery. To determine the correct power supply unit, the exact dimensions and the total load are required and must therefore be ordered separately.


    Manufacturer & Item No. : Mextronic LTCOBW3052850024IP20C90
    Light color: : Warm white (3000K)
    Number of LEDs per meter: : 528
    Lumens per LED : 2,7
    Length (meters): : 5
    Total Luminous Flux: Up to : 7128
    Color Rendering : 90
    Beam Angle (Degrees) : 120
    Operating temperature (°C): : -20ºC - 50ºC
    Operating Voltage (Volts) : 24
    Operating current per meter, max. up to (mA). : 625
    Total operating current (max): up to (A). : 3,13
    Power (W) per meter up to: : 15
    Total power (W): : 75
    Width (mm): : 10
    Height in mm: : 2
    Luminous efficacy up to : 95 lm/W
    Energy class: : F
    Protection class: : 20
    Divisible : 46mm
    Nominal service life up to (hours): : 35000
    Dimmable : dimmable via PWM
    Color of circuit board: : White

    Note

    If the LED strips are operated for several hours a day, we recommend additional cooling. For example, mounting on aluminum profiles provides good heat dissipation. An additional heat sink is necessary, especially with an output of more than 14.4 watts per meter. The recommended operating temperature should always be observed and the strips must not be installed in confined or enclosed spaces without cooling facilities.


    COB Eco 528 Neutral White (4000K), 45 W, 3 m, 24 V, IP20, CRI 90

    Der COB LED Strip liefert eine homogene, punktfreie Lichtlinie in neutralweißem 4000 K und eignet sich ideal für Akzent- und Allgemeinbeleuchtung im Innenbereich.

    • Gleichmäßiges Licht dank 528 LEDs pro Meter und 120° Abstrahlwinkel
    • Natürliche Farbwiedergabe mit hohem CRI 90
    • Energiesparend: nur 15 W pro Meter, per PWM dimmbar
    • Einfache 24 V-Installation mit beidseitig angelöteten Anschlusskabeln
    • Schlankes 10 mm Design – optimal für Aluprofile und enge Einbauorte
    State New
    Model LTCOBW3052850024IP20C90
    Manufacturer Mextronic
    Content 5 meter
    Weight 150 g
    Product safety information
    Manufacturer:
    Mextronic Wahlerstr. 14 40472 Düsseldorf Germany
    EU-Responsible Person:
    DELYCHI GMBH Schreiberstr. 16D 47058 Duisburg Germany
